Project Description

WASHINGTON STATE FERRIES

WSF/Siemens Marine

Jumbo Mark II Class Ferries: 3 vessels

Systems:

These diesel electric class vessels were built with new Siemens electrical equipment: Alarm and Monitoring Systems, Propulsion Control Systems, Propulsion AC Drives and Generator Control Systems (including Power Management System and Woodward digital controls) Auxiliary Machinery Controls. The Siemens S5 fully redundant 155H PLC-based system was designed for high fault tolerance and no single point failures.

  • Equipment supplied:

By Siemens and/or subcontractors:

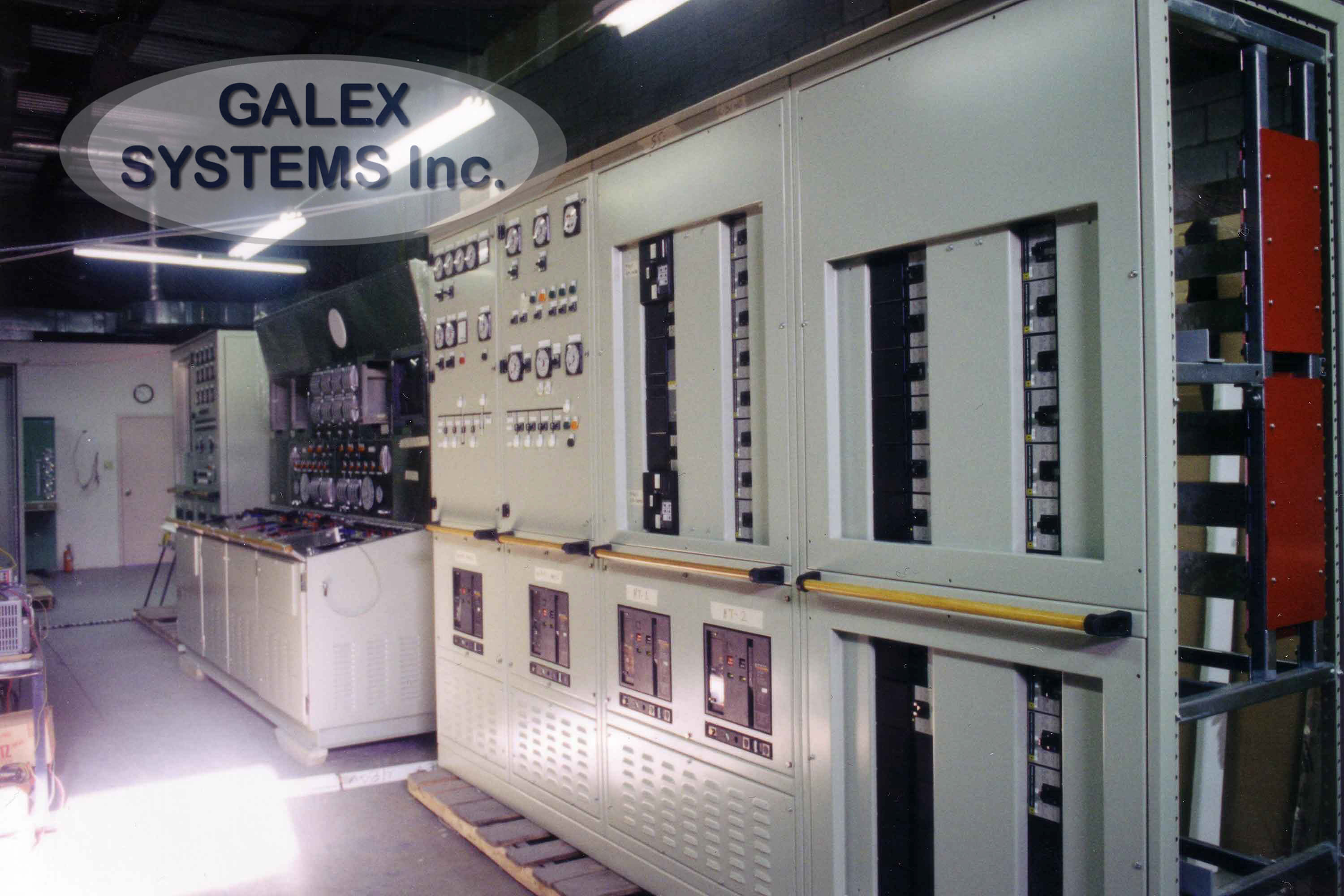

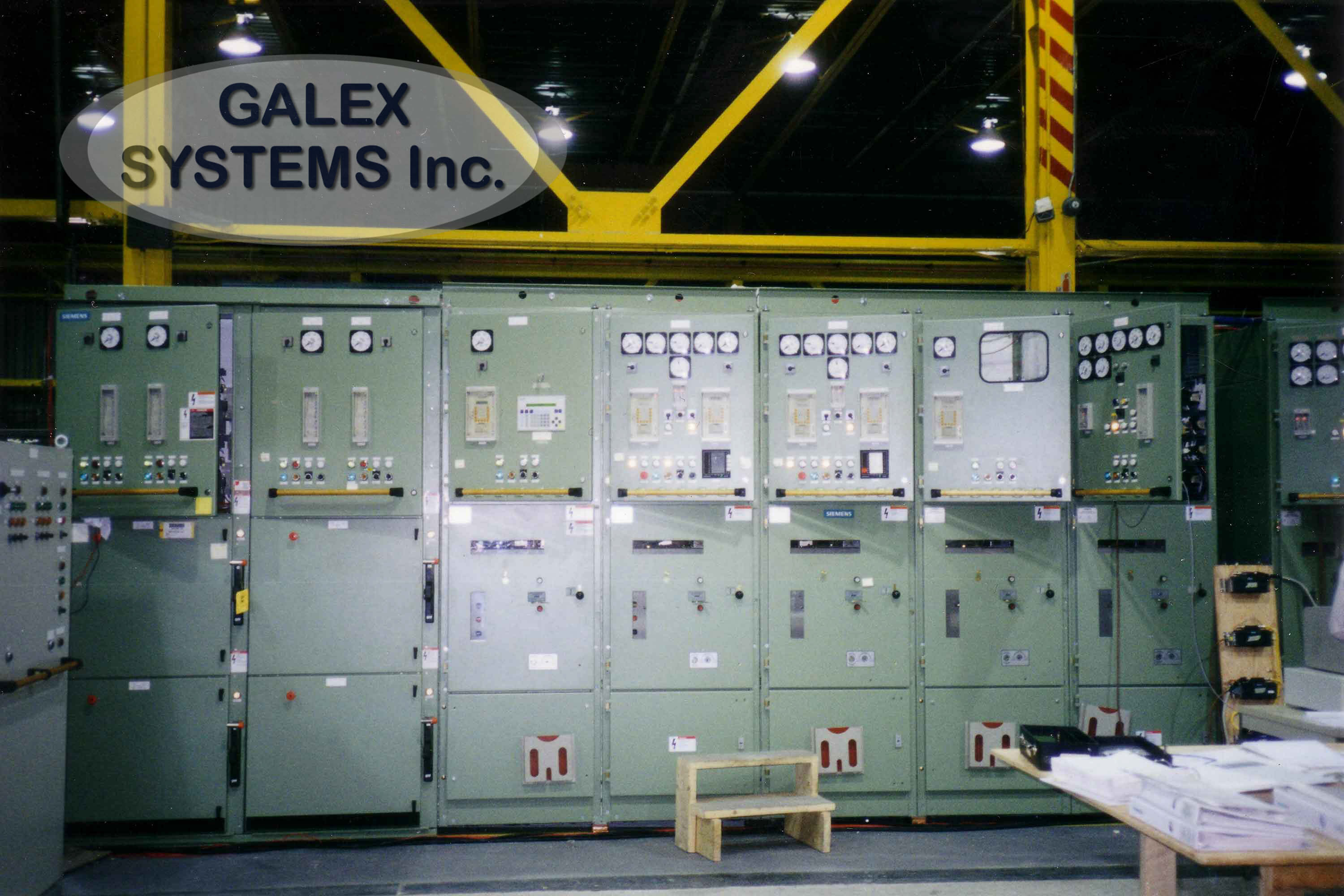

  • Medium Voltage Propulsion Switchboard,

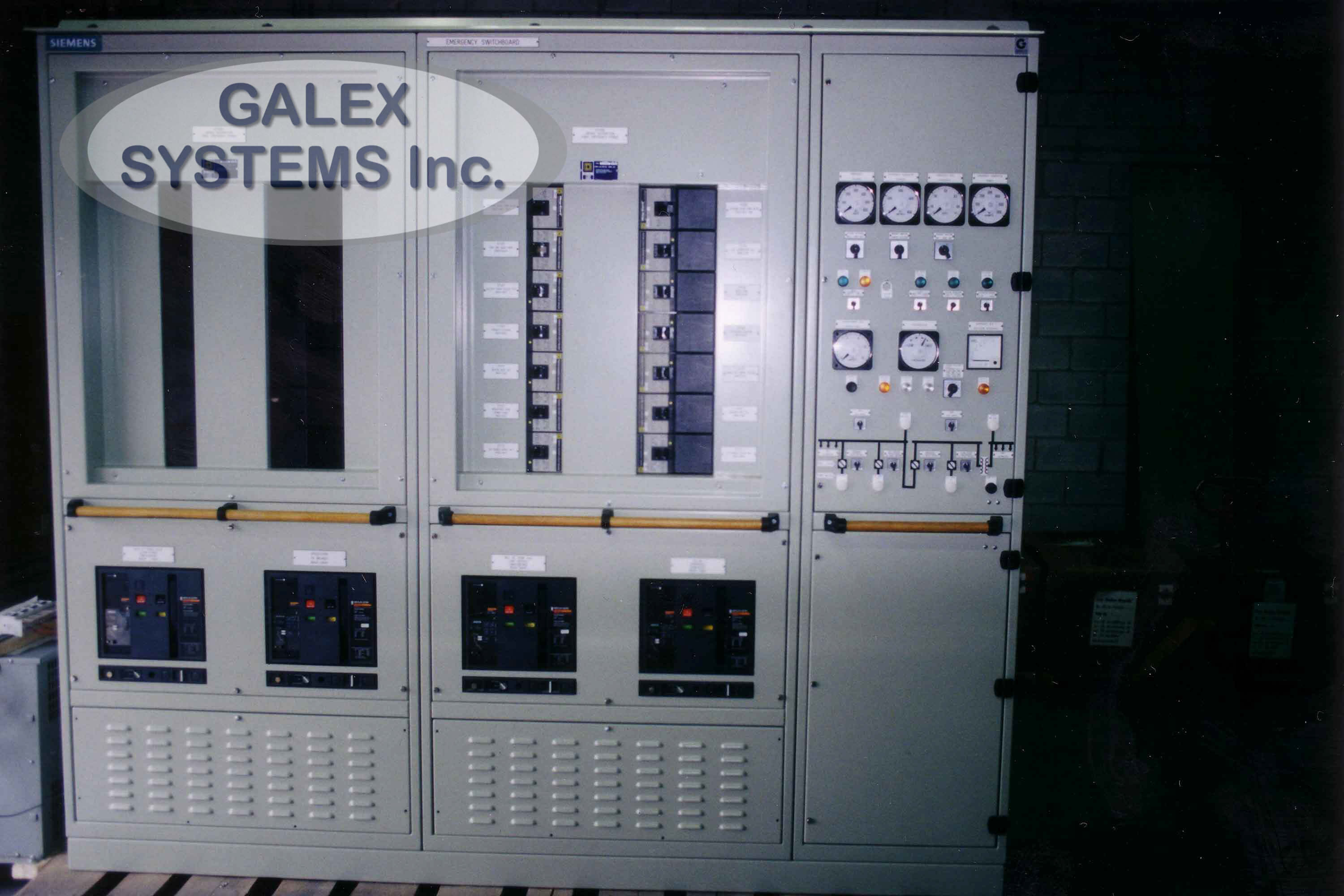

  • EOS Console,
  • Ship Service Switchboard,

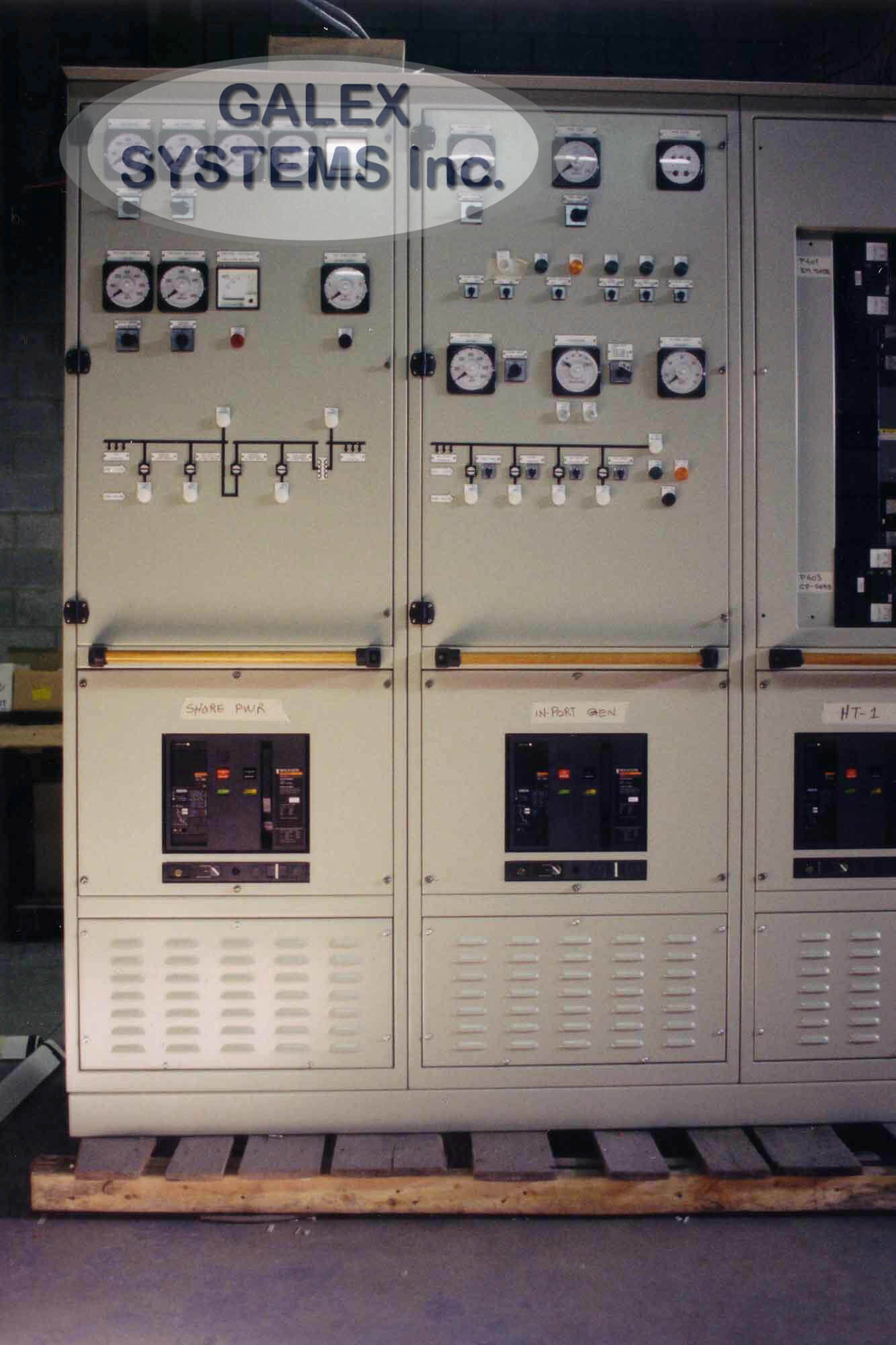

  • Emergency Switchboard,
  • Motor-Generator Set Control,
  • Clean Power Switchboard,
  • Alarm and Monitoring System,
  • Auxiliary Machinery Controls,
  • Local Diesel Engines Controls

Engineering services provided:

Mechanical and Electrical Engineering, design and drafting for the:

  • Medium Voltage Propulsion Switchboard Control-sections,
  • EOS Console,
  • Ship Service Switchboard,
  • Emergency Switchboard,
  • Motor-Generator Set Control,
  • Clean Power Switchboard,
  • Alarm and Monitoring System Cubicles and Remote I/O’s,
  • Auxiliary Machinery Control-cubicles,
  • Local Diesel Engines Console.

Installation supervision, Manufacturing supervision, FAT and commissioning:

  • Medium Voltage Propulsion Switchboard Control-sections,
  • EOS Console,
  • Ship Service Switchboard,
  • Emergency Switchboard,
  • Motor-Generator Set Control,
  • Clean Power Switchboard,
  • Alarm and Monitoring System Cubicles and Remote I/O’s,
  • Auxiliary Machinery Control-cubicles,
  • Local Diesel Engines Console.

Technical documentation:

Electrical and mechanical drawings and schematics for all affected systems – Complete documentation Package.

1994-1997 Montreal, Qc; Seattle, Wa.
