38 – Motor Control Center

MOTOR CONTROL CENTER

3 Offshore Construction Vessels, Davie Shipyard, Levis, Quebec

Systems:

GALEX SYSTEMS inc. supplied the Motor Control Centers integrated with IAS and 450V AC distribution system in respect to IEC and DNV register requirements (DP3).

Equipment supplied/manufactured:

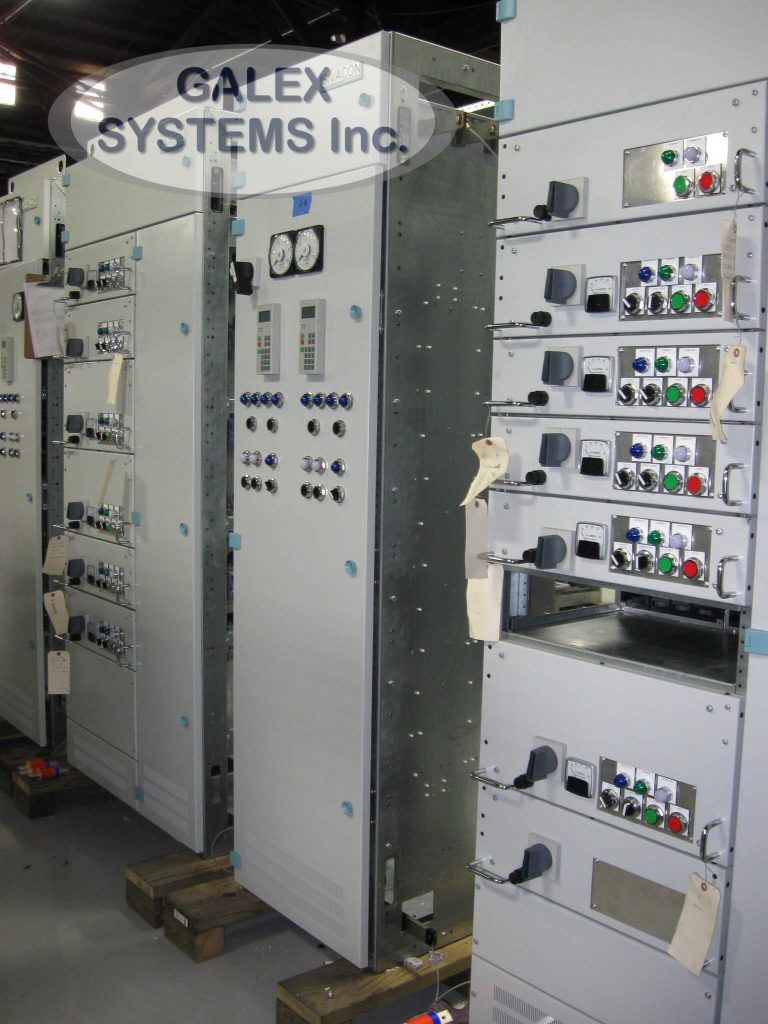

Each vessel is equipped with 3(three) MCC line-ups for a total of 24(twenty-four) sections including VFD’s, draw-out enclosures and interconnections cubicles.

Engineering services provided:

Mechanical & Electrical Engineering, design & drafting for integrated MCC line-ups.

Project Management:

During this project, from preliminary design to the final test, our company demonstrates the efficient management in respect to the deadlines and high quality level, delivering the project in time and no extra cost.

Installation, Manufacturing and commissioning:

According the detailed IEC and DNV specifications; Fully functional test;

Technical documentation:

Electrical & mechanical drawings and schematics – Complete documentation package.

2008-2009 Montréal, Qc.
